Product Detail: HRFS-PS/S-TC-3Z

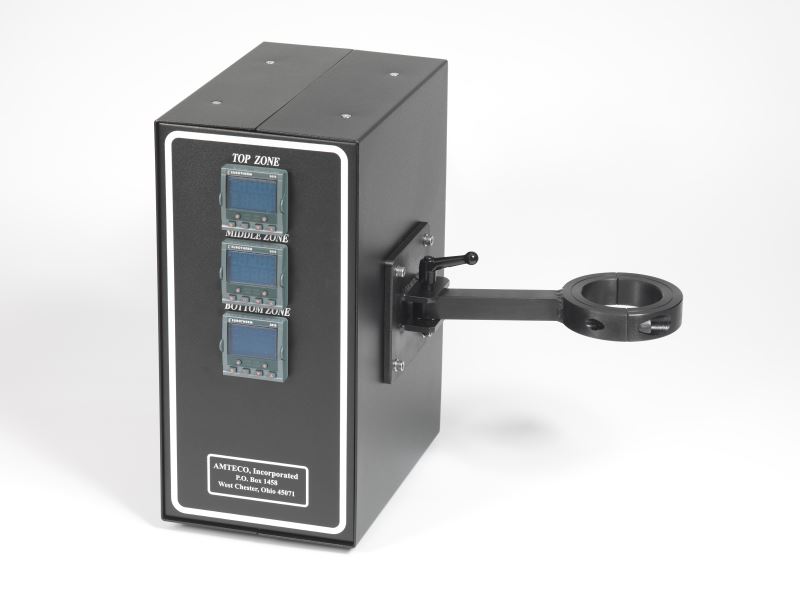

Product Summary Three-zone furnace controller that can be used with all our AMTECO furnaces. Price: $7295.00 base (two-zone)   Specifications Can be used to control all AMTECO furnaces. Independent and programmable, one program / eight segment Eurotherm 2416 PID temperature controllers with latching alarms. Zero crossover fired SCR power modules. RS 485 serial communication. (optional) System power requirements: 120 VAC / 20 Amp. 10 amps per zone. (Three-zone unit) Controller instrument safety breaker. (120 V / 4 A) Cable set from temperature controller to furnace. Dimensions: 152.4mm (6”) wide x 317.5mm (12.5”) tall x 203.2mm (8”) deep. Configurable for column or tabletop mount. (Specify when ordering) Full Scale High (FSH) Latching Alarms. Configurable for Fahrenheit or Celsius. Programmable set point and ramp rates. Specify thermocouple-input type upon order. Can be ordered with optional mounting arm (pictured)
